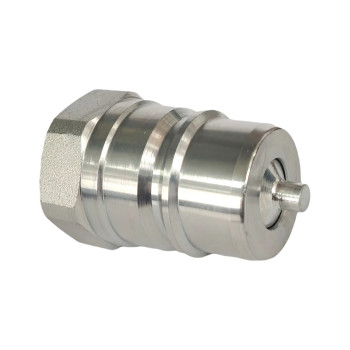

EH 67 Series - DNP PNZ1 Quick Coupler (Steel)
- group name
- Poppet (Interchange) Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Tue, 27 Jan 2026 22:48:47 GMT
Paramtents
Interchange DNP PNZ1 SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with the DNP PNZ1 SERIES. Steel Product. The 67 series features poppet valve quick couplings that are specialized for Australia and New Zealand.
Detailed
This EH series is interchangeable with DNP PNZ1 SERIES. The 67 series features poppet valve quick couplings that are specialized for Australia and New Zealand.
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
HFSFC6710-1" | 1'' | 108 | 65 | S46 | 1"BSPP |
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
HFSFP6710-1" | 1'' | 66 | S46 | 1"BSPP |
