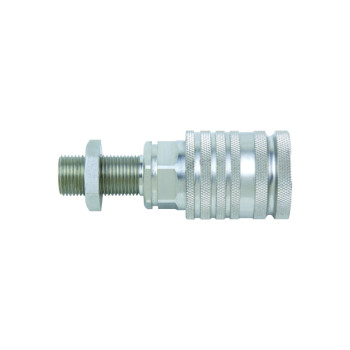

EH 78 Series - CPV Push-Pull ISO 7241-A Quick Couplings For Agriculture (Steel)
- group name
- ISO 7241-A Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Tue, 24 Mar 2026 03:38:50 GMT
Paramtents
Interchange STUCCHI I-IP SERIES
Interchange FASTER CPV SERIES
Interchange FASTER CNV SERIES
Interchange PIONEER 2000 SERIES
Interchange PARKER 4200 SERIES
Interchange DIXON AG SERIES
Interchange HANSEN HA15000 SERIES
Interchange SAFEWAY S40 SERIES
Interchange DNP PPV1 SERIES
Interchange VOSWINKEL HP SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PIONEER 2000 SERIES, PARKER 4200 SERIES, DIXON AG SERIES, HANSEN HA15000 SERIES, SAFEWAY S40 SERIES, DNP PPV1 SERIES and VOSWINKEL HP SERIES. Steel Product. ISO 7241-1 Series A compliant bulkhead couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Detailed
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PIONEER 2000 SERIES, PARKER 4200 SERIES, DIXON AG SERIES, HANSEN HA15000 SERIES, SAFEWAY S40 SERIES, DNP PPV1 SERIES and VOSWINKEL HP SERIES. ISO 7241-1 Series A compliant bulkhead couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Female Coupler
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-08L | 1/2'' | 96 | 34 | 8 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-10L | 1/2'' | 97 | 35 | 10 | 38 | 6 | S27 | S22 | M16X1.5 |
HFSMC7812-M18X1.5-12L | 1/2'' | 98 | 36 | 12 | 38 | 6 | S27 | S24 | M18X1.5 |
HFSMC7812-M22X1.5-15L | 1/2'' | 100 | 38 | 15 | 38 | 7 | S27 | S30 | M22X1.5 |
HFSMC7812-M26X1.5-18L | 1/2'' | 102 | 40 | 18 | 38 | 8 | S27 | S36 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-06S | 1/2'' | 98 | 36 | 6 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-08S | 1/2'' | 98 | 36 | 8 | 38 | 6 | S27 | S22 | M16X1.5 |
HFSMC7812-M18X1.5-10S | 1/2'' | 99 | 37 | 10 | 38 | 6 | S27 | S24 | M18X1.5 |
HFSMC7812-M20X1.5-12S | 1/2'' | 100 | 38 | 12 | 38 | 6 | S27 | S27 | M20X1.5 |
HFSMC7812-M24X1.5-16S | 1/2'' | 102 | 40 | 16 | 38 | 7 | S27 | S32 | M24X1.5 |
Male Plug
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
| HFSMP7812-M14X1.5-08L | 1/2'' | 80 | 34 | 8 | 6 | S27 | S19 | M14X1.5 |
| HFSMP7812-M16X1.5-10L | 1/2'' | 81 | 35 | 10 | 6 | S27 | S22 | M16X1.5 |
HFSMP7812-M18X1.5-12L | 1/2'' | 82 | 36 | 12 | 6 | S27 | S24 | M18X1.5 |
HFSMP7812-M22X1.5-15L | 1/2'' | 84 | 38 | 15 | 7 | S27 | S30 | M22X1.5 |
HFSMP7812-M26X1.5-18L | 1/2'' | 86 | 40 | 18 | 8 | S27 | S36 | M26X1.5 |
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
HFSMP7812-M14X1.5-06S | 1/2'' | 82 | 36 | 6 | 6 | S27 | S19 | M14X1.5 |
HFSMP7812-M16X1.5-08S | 1/2'' | 82 | 36 | 8 | 6 | S27 | S22 | M16X1.5 |
HFSMP7812-M18X1.5-10S | 1/2'' | 83 | 37 | 10 | 6 | S27 | S24 | M18X1.5 |
HFSMP7812-M20X1.5-12S | 1/2'' | 84 | 38 | 12 | 6 | S27 | S27 | M20X1.5 |
HFSMP7812-M24X1.5-16S | 1/2'' | 86 | 40 | 16 | 7 | S27 | S32 | M24X1.5 |
