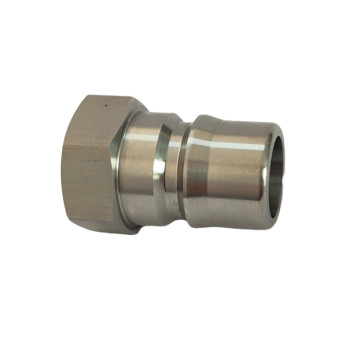

EH 80 Series - ISO 7241-B Quick Couplings Free Flow (Stainless Steel)
- group name
- ISO 7241-B Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Thu, 05 Feb 2026 11:50:57 GMT
Paramtents
Interchange DNP PBOX SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with DNP PBOX SERIES. Stainless Steel Product. As the free-flow version of the 83 series, 80 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss. ISO 7241 part B interchange.
Detailed
This EH series is interchangeable with DNP PBOX SERIES. As the free-flow version of the 83 series, 80 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss. ISO 7241 part B interchange.
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSSFC8014-1/4" | 1/4'' | 58 | 28 | S17 | 1/4"NPT(BSPP) |
HFSSFC8038-3/8" | 3/8'' | 65 | 35 | S21 | 3/8"NPT(BSPP) |
HFSSFC8012-1/2" | 1/2'' | 72 | 44.5 | S29 | 1/2"NPT(BSPP) |
HFSSFC8034-3/4" | 3/4'' | 88 | 55 | S35 | 3/4"NPT(BSPP) |
HFSSFC8010-1" | 1'' | 102 | 65 | S41 | 1"NPT(BSPP) |
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFP8014-1/4" | 1/4'' | 36.5 | S17 | 1/4"NPT(BSPP) |
HFSSFP8038-3/8" | 3/8'' | 40 | S21 | 3/8"NPT(BSPP) |
HFSSFP8012-1/2" | 1/2'' | 44 | S29 | 1/2"NPT(BSPP) |
HFSSFP8034-3/4" | 3/4'' | 52 | S35 | 3/4"NPT(BSPP) |
HFSSFP8010-1" | 1'' | 62 | S42 | 1"NPT(BSPP) |
