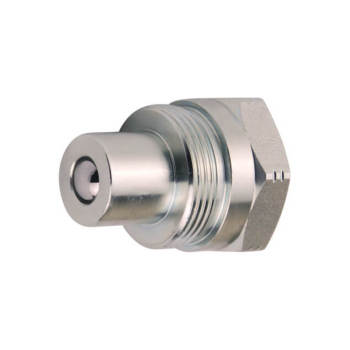

EH 88 Series - PARKER 3000 Enerpac Screw To Connect Quick Couplers 10000PSI (Steel)
- group name
- 10,000 PSI High Pressure Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Mon, 23 Mar 2026 05:41:10 GMT
Paramtents
Interchange PARKER 3000 SERIES
Interchange FASTER PVSM SERIES
Interchange STUCCHI IV-HP SERIES
Interchange CEJN 232 SERIES
Interchange DIXON T SERIES
Interchange DNP PVS SERIES
Interchange HANSEN WA56000 SERIES
Interchange SAFEWAY S30 SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER 3000 SERIES, STUCCHI IV-HP SERIES, FASTER PVSM SERIES, CEJN 232 SERIES, DIXON T SERIES, DNP PVS SERIES, HANSEN WA56000 SERIES, and SAFEWAY S30 SERIES. Steel Product. These screw-to-connect couplings are engineered for ultra-high-pressure applications. Featuring a durable metal-to-metal sealing ball valve, these ISO 14540-compliant couplings deliver exceptional performance in demanding hydraulic systems.
Detailed
This EH series is interchangeable with PARKER 3000 SERIES, STUCCHI IV-HP SERIES, FASTER PVSM SERIES, CEJN 232 SERIES, DIXON T SERIES, DNP PVS SERIES, HANSEN WA56000 SERIES, and SAFEWAY S30 SERIES. These screw-to-connect couplings are engineered for ultra-high-pressure applications. Featuring a durable metal-to-metal sealing ball valve, these ISO 14540-compliant couplings deliver exceptional performance in demanding hydraulic systems.
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSMC8814-1/4" | 1/4'' | 62.5 | 30 | S22 | 1/4''NPTF |
| HFSMC8838-3/8" | 3/8'' | 71.5 | 35 | S24 | 3/8''NPTF |
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | Hp(mm) | T |
| HFSFP8814-1/4" | 1/4'' | 45 | 1-18UNS | S19 | 1/4''NPTF |
| HFSFP8838-3/8" | 3/8'' | 40 | 1-3/16-16UN | S32 | 3/8''NPTF |
Accessories
Dash Size | ISO Size | Art. No.
Dust Plug For Coupler | Art. No.
Dust Cap For Plug | Material |
04 | 6.3 | ISO-14540-1/4-P-AL | ISO-14540-1/4-C-AL | Aluminum |
06 | 10 | ISO-14540-3/8-P-AL | ISO-14540-3/8-C-AL | Aluminum |
