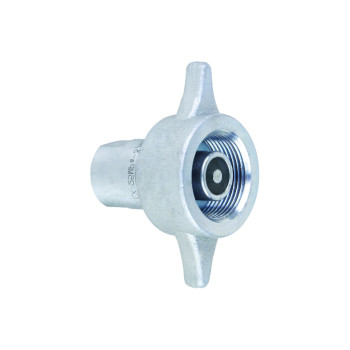

EH 99 Series - CVE Screw-To-Connect Wing Nut Couplers For Road Machines Applications (Steel)
- group name
- Screw-To-Connect Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Sun, 15 Feb 2026 03:26:37 GMT
Paramtents
Interchange DNP PVE1 SERIES
Interchange FASTER CVE SERIES
Interchange VOSWINKEL HT SERIES
Interchange INTEVA VCR SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with DNP PVE1 SERIES, FASTER CVE SERIES, VOSWINKEL HT SERIES, and INTEVA VCR SERIES Steel Product. Heavy-duty couplings engineered for transport industry applications. Feature a brass screw-on sleeve with integrated hexagonal wing nuts for secure tool-assisted installation and manual adjustment capability.
Detailed
This EH series is interchangeable with DNP PVE1 SERIES, FASTER CVE SERIES, VOSWINKEL HT SERIES, and INTEVA VCR SERIES Heavy-duty couplings engineered for transport industry applications. Features a screw-on sleeve with integrated hexagonal wing nuts for secure tool-assisted installation and manual adjustment capability.
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | UN | H(mm) | Ls(mm) | T |
| HFSFC9934-3/4" | 3/4'' | 1-3/4-10UNS | 114 | 77 | 3/4"BSPP |
HFSFC9910-1" | 1'' | 2-1/8-10UNS | 114 | 83 | 1"BSPP |
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | UN | Lp(mm) | D(mm) | d(mm) | T |
| HFSFP9934-3/4" | 3/4'' | 1-3/4-10UNS | 78 | 57 | 25.4 | 3/4"BSPP |
HFSFP9910-1" | 1'' | 2-1/8-10UNS | 83 | 60 | 31.8 | 1"BSPP |
