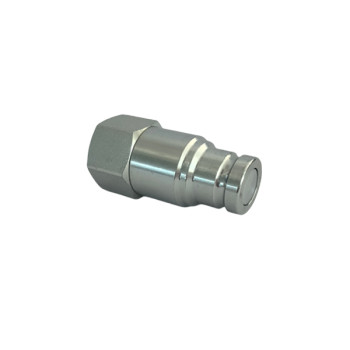

EH 95 Series - FIRG ISO 16028 Flat Face Quick Coupling (Steel)

EH 95 Series - FIRG ISO 16028 Flat Face Quick Coupling (Steel)
EH 95 Series - FIRG ISO 16028 Flat Face Quick Coupling (Steel)EH 95 Series - FIRG ISO 16028 Flat Face Quick Coupling (Steel)EH 95 Series - FIRG ISO 16028 Flat Face Quick Coupling (Steel)EH 95 Series - FIRG ISO 16028 Flat Face Quick Coupling (Steel)
group name
Flat Face ISO 16028 Quick Couplers
Min Order
1 piece
brand name
EH
update time
Mon, 09 Feb 2026 05:34:01 GMT
contact supplier

Paramtents

  • Interchange STUCCHI FIRG SERIES

  • Interchange DNP PLT1 SERIES

  • Interchange PARKER FF SERIES

  • Interchange EATON AEROQUIP FD 89 SERIES

  • Interchange DIXON HT SERIES

  • Interchange HANSEN QA29000 SERIES

  • Interchange SAFEWAY FFE49 SERIES

Packging & Delivery

  • Min Order1 piece

Briefing

This EH series is interchangeable with STUCCHI FIRG SERIES, DNP PLT1 SERIES, PARKER FF SERIES, EATON AEROQUIP FD 89 SERIES, DIXON HT SERIES, HANSEN QA29000 SERIES, and SAFEWAY FFE49 SERIES. Steel Product. The 95 Series, renowned as the original ISO 16028-compliant coupling solution, continues to deliver reliable performance, exceptional durability, and competitive value. Its innovative integrated sealing system significantly minimizes premature wear by effectively compensating for three critical stress factors: relative movement between coupling components, sudden pressure impulses, and the constant strain exerted by hose weight during horizontal operation.

Detailed

Items
Specs
This EH series is interchangeable with STUCCHI FIRG SERIES, DNP PLT1 SERIES, PARKER FF SERIES, EATON AEROQUIP FD 89 SERIES, DIXON HT SERIES, HANSEN QA29000 SERIES, and SAFEWAY FFE49 SERIES. The 95 Series, renowned as the original ISO 16028-compliant coupling solution, continues to deliver reliable performance, exceptional durability, and competitive value. Its innovative integrated sealing system significantly minimizes premature wear by effectively compensating for three critical stress factors: relative movement between coupling components, sudden pressure impulses, and the constant strain exerted by hose weight during horizontal operation.

Female Coupler


Flat/Flush Face Coupling femle
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
D(mm)
Hs(mm)
T
HFSFC9514-1/4" NPT
1/4''
53
28
S22
1/4" NPT
HFSFC9514-1/4" BSP
1/4''
53
28
S22
1/4" BSPP
HFSFC9514-7/16" UNF
1/4''
53
28
S22
7/16" UNF-20
HFSFC9538-3/8" NPT
3/8''
64.5
32
S27
3/8" NPT
HFSFC9538-1/2" NPT
3/8''
69.5
32
S27
1/2" NPT
HFSFC9538-3/8" BSP
3/8''
64.5
32
S27
3/8" BSPP
HFSFC9538-1/2" BSP
3/8''
69.5
32
S27
1/2" BSPP
HFSFC9538-9/16" UNF
3/8''
69.5
32
S27
9/16" UNF-18
HFSFC9538-3/4" UNF
3/8''
69.5
32
S27
3/4" UNF-16
HFSFC9512-1/2" NPT
1/2''
73.5
38
S32
1/2" NPT
HFSFC9512-3/4" NPT
1/2''
79
38
S36
3/4" NPT
HFSFC9512-1/2" BSP
1/2''
73.5
38
S32
1/2" BSPP
HFSFC9512-3/4" BSP
1/2''
79
38
S36
3/4" BSPP
HFSFC9512-3/4" UNF
1/2''
79
38
S36
3/4" UNF-16
HFSFC9512-7/8" UNF
1/2''
79
38
S32
7/8" UNF-14
HFSFC9512-1-1/16" UN
1/2''
80.5
38
S36
1-1/16" UN-12
HFSFC9558-3/4" NPT
5/8''
80.5
42
S36
3/4" NPT
HFSFC9534-3/4" NPT
3/4''
93
48
S41
3/4" NPT
HFSFC9534-3/4" BSP
3/4''
93
48
S41
3/4" BSPP
HFSFC9534-1" NPT
3/4''
93
48
S41
1" NPT
HFSFC9534-1" BSP
3/4''
93
48
S41
1" BSPP
HFSFC9534-1-1/16" UN
3/4''
93
48
S41
1-1/16" UN-12
HFSFC9534-1-5/16" UN
3/4''
93
48
S41
1-5/16" UN-12
HFSFC9510-1" NPT
1''
93.5
56.5
S46
1" NPT
HFSFC9510-1" BSP
1''
93.5
56.5
S46
1" BSPP
HFSFC9510-1-1/4" NPT
1''
98
56.5
S55
1-1/4" NPT
HFSFC9510-1-1/4" BSP
1''
98
56.5
S55
1-1/4" BSPP
HFSFC9510-1-5/16" UN
1''
98
56.5
S55
1-5/16" UN-12

Male Plug

Flat/Flush Face Coupling male
Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
Hp(mm)
T
HFSFP9514-1/4" NPT
1/4''
50
S22
1/4" NPT
HFSFP9514-1/4" BSP
1/4''
50
S22
1/4" BSPP
HFSFP9514-7/16" UNF
1/4''
50
S22
7/16" UNF-20
HFSFP9538-3/8" NPT
3/8''
60
S27
3/8" NPT
HFSFP9538-1/2" NPT
3/8''
62
S27
1/2" NPT
HFSFP9538-3/8" BSP
3/8''
60
S27
3/8" BSPP
HFSFP9538-1/2" BSP
3/8''
63
S27
1/2" BSPP
HFSFP9538-9/16" UNF
3/8''
63
S27
9/16" UNF-18
HFSFP9538-3/4" UNF
3/8''
63
S27
3/4" UNF-16
HFSFP9512-1/2" NPT
1/2''
68
S32
1/2" NPT
HFSFP9512-3/4" NPT
1/2''
69.5
S36
3/4" NPT
HFSFP9512-1/2" BSP
1/2''
68
S32
1/2" BSPP
HFSFP9512-3/4" BSP
1/2''
69.5
S36
3/4" BSPP
HFSFP9512-3/4" UNF
1/2''
69.5
S36
3/4" UNF-16
HFSFP9512-7/8" UNF
1/2''
69.5
S32
7/8" UNF-14
HFSFP9512-1-1/16" UN
1/2''
70.5
S36
1-1/16" UN-12
HFSFP9558-3/4" NPT
5/8''
70.5
S36
3/4" NPT
HFSFP9534-3/4" NPT
3/4''
82.5
S41
3/4" NPT
HFSFP9534-3/4" BSP
3/4''
82.5
S41
3/4" BSPP
HFSFP9534-1" NPT
3/4''
82.5
S41
1" NPT
HFSFP9534-1" BSP
3/4''
82.5
S41
1" BSPP
HFSFP9534-1-1/16" UN
3/4''
82.5
S41
1-1/16" UN-12
HFSFP9534-1-5/16" UN
3/4''
82.5
S41
1-5/16" UN-12
HFSFP9510-1" NPT
1''
89
S46
1" NPT
HFSFP9510-1" BSP
1''
89
S46
1" BSPP
HFSFP9510-1-1/4" NPT
1''
92
S55
1-1/4" NPT
HFSFP9510-1-1/4" BSP
1''
92
S55
1-1/4" BSPP
HFSFP9510-1-5/16" UN
1''
92
S55
1-5/16" UN-12

Accessories


Flat/Flush Face Coupling accessories
Flat/Flush Face Coupling accessories
Dash Size
ISO Size
Art. No.
Dust Cap For Coupler
Art. No.
Dust Cap For Plug
Material
04
6.3
ISO16028-6-C-P
ISO16028-6-P-P
PVC
06
10
ISO16028-10-C-P
ISO16028-10-P-P
PVC
08
12.5
ISO16028-12-C-P
ISO16028-12-P-P
PVC
10
16
ISO16028-16-C-P
ISO16028-16-P-P
PVC
12
19
ISO16028-19-C-P
ISO16028-19-P-P
PVC
16
25
ISO16028-25-C-P
ISO16028-25-P-P
PVC

Technical Specifications

Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Min. Burst
Pressure
Male
(bar)
Min. Burst
Pressure
Female
(bar)
Min. Burst
Pressure
Coupled
(bar)
Spillage
(ml)
04
1/4''
420
320
300
1300
1200
1200
0.006
06
3/8''
300
250
300
1200
1200
1200
0.008
08
1/2''
250
250
250
1000
1000
1000
0.01
10
5/8''
250
250
250
1000
1000
1000
0.02
12
3/4''
250
250
250
1000
1000
1000
0.02
16
1''
200
200
250
800
800
1000
0.03
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 500 (CRIII)
Specifications:

Market Interchange

STUCCHI FIRG SERIES

DNP PLT1 SERIES

HANSEN QA29000 SERIES

PARKER FF SERIES

EATON AEROQUIP FD 89 SERIES

SAFEWAY FFE49 SERIES

DIXON HT SERIES

Valve Type:
Flat
Connection:
Push to Connect
Disconnection:
Sleeve Retraction
Connection Under Pressure:
Not Allowed

Pressure Drop

Pressure Drop
