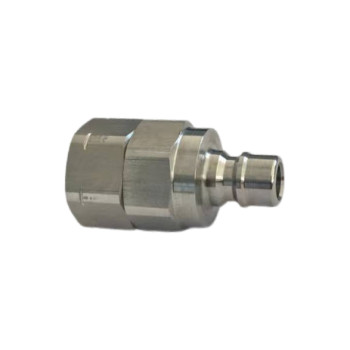

EH 103/104 Series - SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (AISI 316 Stainless Steel)
- group name
- Poppet (Interchange) Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Wed, 22 Apr 2026 23:18:14 GMT
Paramtents
Interchange PARKER H SERIES
Interchange PARKER IH SERIES
Interchange SNAP-TITE H SERIES
Interchange SNAP-TITE IH SERIES
Interchange DIXON V SERIES
Interchange FASTER TNV SERIES
Interchange FASTER TNL SERIES
Interchange DNP PNVX SERIES
Interchange DNP PNOX SERIES
Interchange STUCCHI SH SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNVX SERIES, DNP PNOX SERIES and STUCCHI SH SERIES. Stainless Steel Product. 103 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 104 parts (free flow) same series. AISI SS316 Material.
Detailed
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNVX SERIES, DNP PNOX SERIES and STUCCHI SH SERIES. Stainless Steel Product. 103 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 104 parts (free flow) same series. AISI SS316 Material.
Female Coupler
| 103 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10314-1/4" | 1/4'' | 50 | 24 | S22 | 84 | 1/4" NPT |
HFSSFC10338-3/8" | 3/8'' | 57 | 27 | S24 | 95 | 3/8 "NPT |
HFSSFC10312-1/2" | 1/2'' | 65 | 34 | S30 | 110 | 1/2" NPT |
HFSSFC10334-3/4" | 3/4'' | 64 | 42 | S36 | 106 | 3/4" NPT |
HFSSFC10310-1" | 1'' | 71 | 51 | S46 | 116 | 1" NPT |
| 104 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10414-1/4" | 1/4'' | 50 | 24 | S22 | 84 | 1/4" NPT |
HFSSFC10438-3/8" | 3/8'' | 57 | 27 | S24 | 95 | 3/8 "NPT |
HFSSFC10412-1/2" | 1/2'' | 65 | 34 | S30 | 110 | 1/2" NPT |
HFSSFC10434-3/4" | 3/4'' | 64 | 42 | S36 | 106 | 3/4" NPT |
HFSSFC10410-1" | 1'' | 71 | 51 | S46 | 116 | 1" NPT |
Male Plug
| 103 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFSSFP10314-1/4" | 1/4'' | 49 | 10.8 | S22 | 84 | 1/4" NPT |
HFSSFP10338-3/8" | 3/8'' | 57 | 12.9 | S24 | 95 | 3/8 "NPT |
HFSSFP10312-1/2" | 1/2'' | 63 | 16 | S30 | 110 | 1/2" NPT |
HFSSFP10334-3/4" | 3/4'' | 64 | 23.3 | S36 | 106 | 3/4" NPT |
HFSSFP10310-1" | 1'' | 68 | 29.7 | S46 | 116 | 1" NPT |
| 104 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFSSFP10414-1/4" | 1/4'' | 49 | 10.8 | S22 | 84 | 1/4" NPT |
HFSSFP10438-3/8" | 3/8'' | 57 | 12.9 | S24 | 95 | 3/8 "NPT |
HFSSFP10412-1/2" | 1/2'' | 63 | 16 | S30 | 110 | 1/2" NPT |
HFSSFP10434-3/4" | 3/4'' | 64 | 23.3 | S36 | 106 | 3/4" NPT |
HFSSFP10410-1" | 1'' | 68 | 29.7 | S46 | 116 | 1" NPT |
