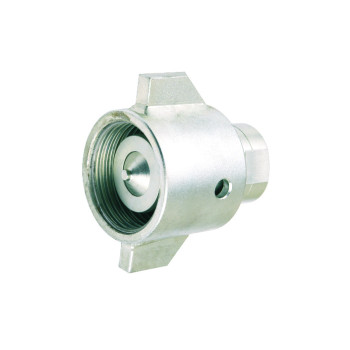

EH 108 Series - SNAP-TITE 75 Screw To Connect Quick Couplings For Oil & Gas Application (Steel)
- group name
- Screw-To-Connect Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Wed, 11 Feb 2026 01:09:26 GMT
Paramtents
Interchange EATON AEROQUIP FD86 SERIES
Interchange SNAP-TITE 75 SERIES
Interchange FASTER OGV SERIES
Interchange STUCCHI VOF SERIES
Interchange DIXON WS SERIES
Interchange VOSWINKEL HV SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with EATON AEROQUIP FD86 SERIES, SNAP-TITE 75 SERIES, FASTER OGV SERIES, STUCCHI VOF SERIES, DIXON WS SERIES, and VOSWINKEL HV SERIES. Steel Product. Engineered for demanding Oil & Gas operations, these robust screw-to-connect couplings feature a durable sleeve design and reliable poppet valve system. The ACME threaded connection ensures secure, leak-proof performance in critical hydrocarbon service applications. Specifically designed to withstand harsh operating conditions, these couplings deliver dependable service through their rugged construction and precision-engineered components.
Detailed
This EH series is interchangeable with EATON AEROQUIP FD86 SERIES, SNAP-TITE 75 SERIES, FASTER OGV SERIES, STUCCHI VOF SERIES, DIXON WS SERIES, and VOSWINKEL HV SERIES. Engineered for demanding Oil & Gas operations, these robust screw-to-connect couplings feature a durable sleeve design and reliable poppet valve system. The ACME threaded connection ensures secure, leak-proof performance in critical hydrocarbon service applications. Specifically designed to withstand harsh operating conditions, these couplings deliver dependable service through their rugged construction and precision-engineered components.
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | B(mm) | D(mm) | T |
| HFSFC10834-3/4" | 3/4'' | 70 | 82.5 | 32 | 3/4''NPT |
HFSFC10810-1" | 1'' | 80.7 | 102 | 41 | 1''NPT |
HFSFC108114-1-1/4" | 1-1/4'' | 109 | 119 | 50 | 1-1/4''NPT |
HFSFC108112-1-1/2" | 1-1/2'' | 128.5 | 138 | 58 | 1-1/2''NPT |
HFSFC10820-2" | 2'' | 152 | 170 | 75 | 2''NPT |
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | C(mm) | T |
| HFSFP10834-3/4" | 3/4'' | 83 | 32 | 44.5 | 3/4''NPT |
HFSFP10810-1" | 1'' | 106 | 41 | 57 | 1''NPT |
HFSFP108114-1-1/4" | 1-1/4'' | 136 | 50 | 66.5 | 1-1/4''NPT |
HFSFP108112-1-1/2" | 1-1/2'' | 150 | 58 | 82.5 | 1-1/2''NPT |
HFSFP10820-2" | 2'' | 179 | 75 | 101.5 | 2''NPT |
Accessories
Dash Size | ISO Size | Art. No. Dust Plug For Coupler | Art. No.
Dust Plug For Plug | Material |
12 | 19 | 108-3/4-P-AL | 108-3/4-C-AL | Aluminum |
16 | 25 | 108-1-P-AL | 108-1-C-AL | Aluminum |
20 | 31 | 108-1-1/4-P-AL | 108-1-1/4-C-AL | Aluminum |
24 | 40 | 108-1-1/2-P-AL | 108-1-1/2-C-AL | Aluminum |
32 | 50 | 108-2-P-AL | 108-2-C-AL | Aluminum |
