EH 156 Series - CEJN 116 Quick Couplings For Ultra High Pressure Applications-150 MPa (Steel)
- group name
- Ultra High-Pressure Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Fri, 20 Feb 2026 12:30:02 GMT
Paramtents
Interchange CEJN 116 SERIES
Interchange VOSWINKEL HD SERIES
Interchange FASTER UHP 150 SERIES
Interchange DNP PCJ6 SERIES
Interchange PARKER HP SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with CEJN 116 SERIES, VOSWINKEL HD SERIES, FASTER UHP 150 SERIES, DNP PCJ6 SERIES, and PARKER HP SERIES. Steel Product. Representing EH's most advanced hydraulic coupling technology, the 156 series is engineered for extreme-pressure applications exceeding 150 MPa. These couplings combine unparalleled reliability with robust construction, featuring redundant safety systems that incorporate both visual indicators and mechanical interlocks. Designed for mission-critical operations, the 156 series delivers exceptional performance where standard hydraulic connections would fail, making it the premier solution for ultra-high-pressure systems demanding absolute operational security and durability.
Detailed
This EH series is interchangeable with CEJN 116 SERIES, VOSWINKEL HD SERIES, FASTER UHP 150 SERIES, DNP PCJ6 SERIES, and PARKER HP SERIES. Representing EH's most advanced hydraulic coupling technology, the 156 series is engineered for extreme-pressure applications exceeding 150 MPa. These couplings combine unparalleled reliability with robust construction, featuring redundant safety systems that incorporate both visual indicators and mechanical interlocks. Designed for mission-critical operations, the 156 series delivers exceptional performance where standard hydraulic connections would fail, making it the premier solution for ultra-high-pressure systems demanding absolute operational security and durability.
Female Coupler
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSFC15614-Rc1/4" | 1/4'' | 27 | 24 | 62.5 | Rc 1/4" |
HFSFC15614-Rc3/8" | 1/4'' | 27 | 24 | 62.5 | Rc 3/8" |
HFSFC15614-G1/4" | 1/4'' | 27 | 24 | 62.5 | G1/4" |
HFSFC15614-G3/8" | 1/4'' | 27 | 24 | 62.5 | G3/8" |
HFSFC15614-1/4"NPT | 1/4'' | 27 | 24 | 62.5 | 1/4"NPT |
HFSFC15614-3/8"NPT | 1/4'' | 27 | 24 | 62.5 | 3/8"NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSMC15614-R1/4" | 1/4'' | 27 | 24 | 80 | R 1/4" |
HFSMC15614-R3/8" | 1/4'' | 27 | 24 | 82 | R 3/8" |
HFSMC15614 -1/4"NPT | 1/4'' | 27 | 24 | 80 | 1/4"NPT |
HFSMC15614 -3/8"NPT | 1/4'' | 27 | 24 | 82 | 3/8"NPT |

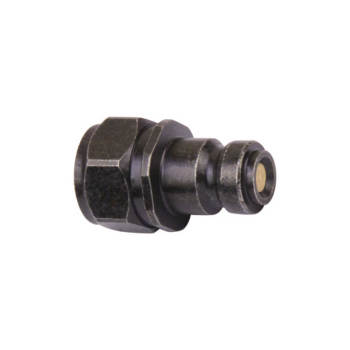

Male Plug
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSFP15614-Rc1/4" | 1/4'' | 22 | 38 | Rc 1/4" |
HFSFP15614-Rc3/8" | 1/4'' | 22 | 38 | Rc 3/8" |
HFSFP15614-G1/4" | 1/4'' | 22 | 38 | G1/4" |
HFSFP15614-G3/8" | 1/4'' | 22 | 38 | G3/8" |
HFSFP15614-1/4"NPT | 1/4'' | 22 | 38 | 1/4"NPT |
HFSFP15614-3/8"NPT | 1/4'' | 22 | 38 | 3/8"NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSMP15614-R1/4" | 1/4'' | 22 | 60 | R 1/4" |
HFSMP15614-R3/8" | 1/4'' | 22 | 60 | R 3/8" |
HFSMP15614-1/4"NPT | 1/4'' | 22 | 60 | 1/4"NPT |
HFSMP15614-3/8"NPT | 1/4'' | 22 | 60 | 3/8"NPT |
