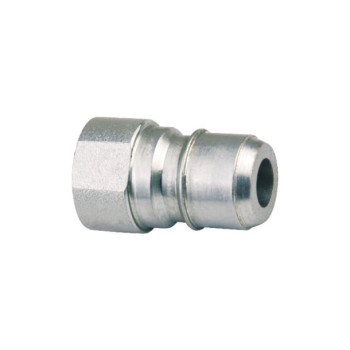

EH 55 Series - HOLMBURY PWS Quick Coupling (AISI 316 Stainless Steel, Brass)
- group name
- Poppet (Interchange) Quick Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Sun, 22 Mar 2026 04:27:29 GMT
Paramtents
Interchange HOLMBURY PWS SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with HOLMBURY PWS SERIES. Brass / AISI 316 Stainless Steel Product. This series is full flow without valve couplings for applications where maximum flow is required. Its smooth, open bore offers the lowest pressure drop of any quick coupling design. It is ideal for applications such as high-pressure water and steam washers, carpet cleaners, and mold coolant lines, and the transmission of non-hazardous fluids.
Detailed
This EH series is interchangeable with HOLMBURY PWS SERIES. This series is full flow without valve couplings for applications where maximum flow is required. Its smooth, open bore offers the lowest pressure drop of any quick coupling design. It is ideal for applications such as high-pressure water and steam washers, carpet cleaners, and mold coolant lines, and the transmission of non-hazardous fluids.
Female Coupler
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | D(mm) | T |
| HFBFC5538-3/8'' | 3/8'' | 41 | S30 | 36 | 3/8"NPT(BSPP) |
| AISI 316 Stainless Steel (Material), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | D(mm) | T |
| HFSSFC5538-3/8'' | 3/8'' | 41 | S30 | 36 | 3/8"NPT(BSPP) |
Male Plug
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFBFP5538-3/8'' | 3/8'' | 38.5 | S22 | 3/8"NPT(BSPP) |
| AISI 316 Stainless Steel (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFP5538-3/8'' | 3/8'' | 38.5 | S22 | 3/8"NPT(BSPP) |
