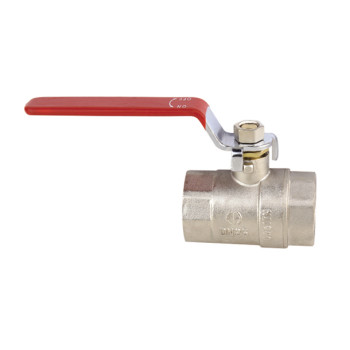

EH 1001,1002 Series | Low Pressure Brass Ball Valve (Brass)

group name: Water and Gas Ball Valves

Min Order: 1 piece

brand name: EH

update time: Tue, 24 Mar 2026 15:50:32 GMT

contact supplier

Paramtents

MOQ (Minimum Order Quantity) 1000 Pieces

Packging & Delivery

Min Order1 piece

Briefing

Brass Product. Suitable for industrial, pneumatic, domestic, and hydraulic installations. Steam, gasoline, fuel, oils, gas-oil, kerosene, acids, compressed air, etc. Minimum and maximum working temperature: -15°C-120°C. Available from 1/4'' to 2'' body sizes.

Detailed

Items

Specs

Brass product. Suitable for industrial, pneumatic, domestic and hydraulic installations. Steam, gasoline, fuel, oils, diesel, kerosene, acids, compressed air, etc. Minimum and maximum operating temperatures: -15 °C to 120 °C. Available in diameters from 6.35 mm to 5.16 mm.

Dimensions

Other threads/fitting ends are available upon request
Body size (inches)	Un(mm)	B(mm)	C(mm)	D(mm)	E(mm)
1/4''	41,8	8	21,5	65,5	41
3/8''	45	10	25	65,5	42
1/2''	53	14	29	91,5	47,2
3/4''	60,7	19	35,5	101	56
1''	69	23	42	118	61,5
1-1/4''	84	31	55,5	114,5	68
1-1/2''	98	39,5	68	176	81
2''	118	48	83	176	87,5

Other threads/fitting ends are available upon request
Body size (inches)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
1/4''	52	8	21,5	65,5	41
3/8''	55	10	25	65,5	42
1/2''	59	14	29	91,5	47,2
3/4''	68,2	19	35,5	101	56
1''	76,2	23	42	118	61,5
1-1/4''	94,5	31	55,5	114,5	68
1-1/2''	104,5	39,5	68	176	81
2''	130	48	83	176	87,5

Technical specifications

Dashboard size	Body Height(Inch)	Maximum working pressure (bar)
04	1/4''	25
06	3/8''	25
08	1/2''	25
12	3/4''	25
16	1''	25
20	1-1/4''	25
24	1-1/2''	25
32	2''	25

Material:	Brass
Sealed:	NBR, seals can be customized to meet your specific working conditions/substrates
Operating temperatures :	-25°C to 125°C, customizable
Surface finishing:	/
Features:	Series exchange:	/
	Valve type :	Ball
	Login:	Handle
	Cut:	Handle
	Connection under pressure :	Not allowed
