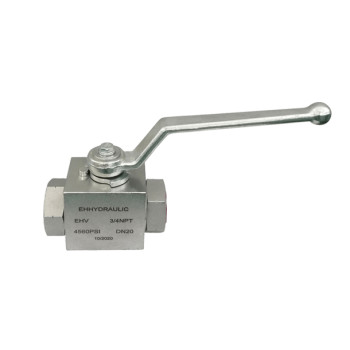

EH EHV Series | BKH Two-Way High Pressure Ball Valve (Steel)
- group name
- High Pressure Ball Valves
- Min Order
- 1 piece
- brand name
- EH
- update time
- Thu, 05 Feb 2026 07:20:45 GMT
Paramtents
Interchange PISTER BKH SERIES
Interchange MHA BKH SERIES
Interchange HYDAC KHB SERIES
Interchange HYDAC KHM SERIES
Interchange CIOCCA CRHI2 SERIES
Interchange GEMELS GE2 SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GE2 SERIES. Steel Product. Two-way high-pressure ball valve (STEEL), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Detailed
This EH series is interchangeable with PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GE2 SERIES. Steel Product. Two-way high-pressure ball valve (STEEL), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | DN | L1(mm) | L2(mm) | L3(mm) | H(mm) | G(mm) | L4(mm) | L5(mm) | L6(mm) | T |
EHV18 | 1/8'' | 4 | 69 | 40 | 154.1 | 73 | 4.5 | 26 | 26 | 33 | 1/8''
BSPP(NPT) |
EHV14 | 1/4'' | 6 | 69 | 40 | 145 | 71 | 4.5 | 26 | 26 | 33 | 1/4'' BSPP(NPT) |
EHV38 | 3/8'' | 10 | 71 | 42 | 145 | 76.5 | 6.5 | 32 | 33 | 38 | 3/8'' BSPP(NPT) |
EHV12 | 1/2'' | 13 | 82 | 48 | 161 | 81 | 6.5 | 37.5 | 36 | 40 | 1/2'' BSPP(NPT) |
EHV34 | 3/4'' | 20 | 96 | 62 | 218 | 112 | 6.5 | 45 | 49 | 57 | 3/4'' BSPP(NPT) |
EHV10 | 1'' | 25 | 113 | 66 | 226.5 | 120 | 6.5 | 55 | 58 | 65 | 1'' BSPP(NPT) |
EHV10-114 | 1'' | 25 | 120 | 66 | 229.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/4''
BSPP(NPT) |
EHV10-112 | 1'' | 25 | 130 | 66 | 234.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/2''
BSPP(NPT) |
EHV114 | 1-1/4'' | 32 | 120 | 80 | 295 | 170 | / | / | 82 | 87 | 1-1/4''
BSPP(NPT) |
EHV112 | 1-1/2'' | 38 | 130 | 85 | 305 | 174.5 | / | / | 93 | 99 | 1-1/2''
BSPP(NPT) |
EHV20 | 2'' | 48 | 140 | 100 | 305 | 197 | / | / | 110 | 115 | 2''
BSPP(NPT) |
Thread Size
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHV18-G1/8 | 4 | G1/8 | / | 69 | 10 | 22 |
| EHV14-G1/4 | 6 | G1/4 | / | 69 | 13.5 | 22 |
| EHV38-G3/8 | 10 | G3/8 | / | 71 | 14 | 27 |
EHV12-G1/2 | 13 | G1/2 | / | 82 | 16.5 | 30 |
EHV34-G3/4 | 20 | G3/4 | / | 95 | 18 | 41 |
EHV10-G1 | 25 | G1 | / | 113 | 20 | 50 |
EHV10-G11/4 | 25 | G1 | / | 120 | 22 | 50 |
EHV10-G11/2 | 25 | G1 | / | 129 | 25 | 60 |
EHV114-G11/4 | 32 | G114 | / | 120 | 29 | 60 |
EHV112-G11/2 | 38 | G112 | / | 130 | 28 | 70 |
EHV20-G2 | 48 | G2 | / | 140 | 29 | 85 |
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHV18-1/8NPT | 4 | 1/8NPT | / | 69 | 10.5 | 22 |
| EHV14-1/4NPT | 6 | 1/4NPT | / | 69 | 15 | 22 |
| EHV38-3/8NPT | 10 | 3/8NPT | / | 71 | 15.5 | 27 |
EHV12-1/2NPT | 13 | 1/2NPT | / | 82 | 17 | 30 |
EHV34-3/4NPT | 20 | 3/4NPT | / | 95 | 20.5 | 41 |
EHV10-1NPT | 25 | 1NPT | / | 113 | 25 | 50 |
EHV10-11/4NPT | 25 | 1-1/4NPT | / | 120 | 22 | 50 |
EHV10-11/2NPT | 25 | 1-1/2NPT | / | 129 | 22 | 60 |
EHV114-11/4NPT | 32 | 1-1/4NPT | / | 120 | 29 | 60 |
EHV112-11/2NPT | 38 | 1-1/2NPT | / | 130 | 30 | 70 |
EHV20-2NPT | 48 | 2NPT | / | 140 | 30 | 85 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-10S | M18X1.5 | 10 | 73 | 12 | 22 |
| EHV-12S | M20X1.5 | 12 | 77 | 12 | 27 |
EHV-16S | M24X1.5 | 16 | 87 | 14 | 30 |
EHV-20S | M30X2 | 20 | 91 | 16 | 32 |
EHV-25S | M36X2 | 25 | 111 | 18 | 41 |
EHV-30S | M42X2 | 30 | 120 | 20 | 50 |
EHV-38S | M52X2 | 38 | 141 | 22 | 60 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-8L | M14X1.5 | 8 | 69 | 10 | 22 |
| EHV-10L | M16X1.5 | 10 | 77 | 11 | 27 |
EHV-12L | M18X1.5 | 12 | 77 | 11 | 27 |
EHV-15L | M22X1.5 | 15 | 83 | 12 | 30 |
EHV-22L | M30X2 | 22 | 103 | 14 | 41 |
EHV-28L | M36X2 | 28 | 107.5 | 14 | 55 |
EHV-35L | M45X2 | 35 | 135 | 16 | 60 |
EHV-42L | M52X2 | 42 | 142 | 16 | 70 |
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-SAE4 | 6 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHV-SAE6 | 10 | 9/16-18UNF | / | 71 | 15.5 | 27 |
EHV-SAE8 | 13 | 3/4-16UNF | / | 82 | 18 | 30 |
EHV-SAE12 | 20 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
EHV-SAE16 | 25 | 1-5/16-12UN | / | 113 | 23 | 50 |
EHV-SAE20 | 32 | 1-5/8-12UN | / | 120 | 25 | 60 |
EHV-SAE24 | 40 | 1-7/8-12UN | / | 130 | 25 | 70 |
EHV-SAE32 | 50 | 2-1/2-12UN | / | 140 | 25 | 80 |
