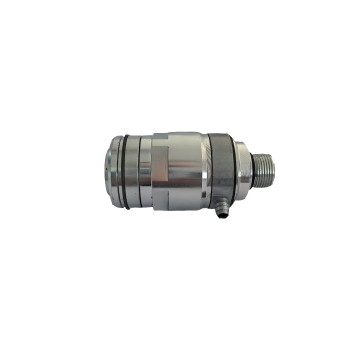

EH 679 Series - 6DNPV Push-Pull Female Coupler for Agriculture Connectable with Both Halves Under Residual Pressure. (Steel)

group name: John Deere Replacement Couplers

Min Order: 1 piece

brand name: EH

update time: Mon, 06 Apr 2026 06:50:35 GMT

contact supplier

Paramtents

Interchange FASTER 6DNPV SERIES

Packging & Delivery

Min Order1 piece

Briefing

This EH series is interchangeable with the FASTER 6DNPV SERIES. Steel Product. Compliant with ISO 7241-1A, this series can be screwed directly into valve ports or rigid piping. It features a breakaway safety function: under excessive force, such as unintentional tractor pull, the coupling halves disconnect cleanly to prevent hose rupture and environmental spills. The male half can get manually disconnected under residual pressure up to 250 bar.

Detailed

Items

Specs

Applications

This EH series is interchangeable with the FASTER 6DNPV SERIES. Steel Product. Compliant with ISO 7241-1A, this series can be screwed directly into valve ports or rigid piping. It features a breakaway safety function: under excessive force, such as unintentional tractor pull, the coupling halves disconnect cleanly to prevent hose rupture and environmental spills. The male half can get manually disconnected under residual pressure up to 250 bar.

Female Coupler

3CFHF Push-Pull Quick Female Couplings female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	HS(mm)	LS(mm)	T
HFSMC67912- M22X1.5-15L-A	1/2''	S46	101.7	M22x1,5 MALE
HFSMC67912- M22X1.5-15L-B	1/2''	S46	101.7	M22x1,5 MALE

Art. No. ending with A has a single oil collecting port;
Art. No. ending with B has double oil collecting ports;

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
08	1/2''	250	250	250	1000	1000	1000	1.4

Material:	Steel
Seals:	NBR, PUR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Market Interchange	FASTER 6DNPV SERIES
	Valve Type:	Poppet
	Connection:	Push to Connect
	Disconnection:	Pull to Disconnect
	Connection Under Pressure:	Connection and disconnection under residual pressure of both halves

EH 679 Series - 6DNPV Push-Pull Female Coupler for Agriculture Connectable with Both Halves Under Residual Pressure. (Steel)

Female Coupler

Art. No. ending with A has a single oil collecting port;

Art. No. ending with B has double oil collecting ports;

Technical Specifications

Market Interchange

FASTER 6DNPV SERIES

Pressure Drop

Applications
