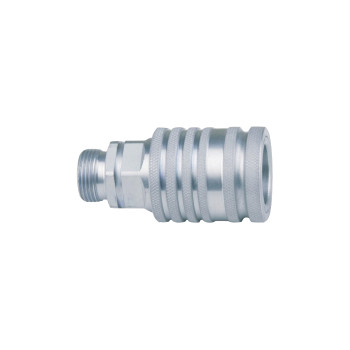

EH 76 Series - CPV CNV PV Push-Pull ISO 7241-A Quick Disconnects For Agriculture (Steel)

EH 76 Series - CPV CNV PV Push-Pull ISO 7241-A Quick Disconnects For Agriculture (Steel)
EH 76 Series - CPV CNV PV Push-Pull ISO 7241-A Quick Disconnects For Agriculture (Steel)EH 76 Series - CPV CNV PV Push-Pull ISO 7241-A Quick Disconnects For Agriculture (Steel)EH 76 Series - CPV CNV PV Push-Pull ISO 7241-A Quick Disconnects For Agriculture (Steel)EH 76 Series - CPV CNV PV Push-Pull ISO 7241-A Quick Disconnects For Agriculture (Steel)
group name
Kubota Replacement Couplers
Min Order
1 piece
brand name
EH
update time
Tue, 24 Mar 2026 19:40:30 GMT
contact supplier

Paramtents

  • Interchange STUCCHI I-IP SERIES

  • Interchange FASTER CPV SERIES

  • Interchange FASTER CNV SERIES

  • Interchange PARKER 4200 SERIES

  • Interchange PIONEER 2000 SERIES

  • Interchange DNP PPV1 SERIES

  • Interchange DIXON AG SERIES

  • Interchange VOSWINKEL HP SERIES

  • Interchange SAFEWAY S40 SERIES

  • Interchange FASTER PV SERIES

  • Interchange FASTER NV SERIES

Packging & Delivery

  • Min Order1 piece

Briefing

This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PARKER 4200 SERIES, PIONEER 2000 SERIES, DNP PPV1 SERIES, DIXON AG SERIES, VOSWINKEL HP SERIES, SAFEWAY S40 SERIES, FASTER PV SERIES, and FASTER NV SERIES. Steel Product. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.

Detailed

Items
Specs
Applications
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PARKER 4200 SERIES, PIONEER 2000 SERIES, DNP PPV1 SERIES, DIXON AG SERIES, VOSWINKEL HP SERIES, SAFEWAY S40 SERIES, FASTER PV SERIES, and FASTER NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.

Female Coupler


Hydraulic Push-Pull Coupling female
L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
Li(mm)
B(mm)
Hs(mm)
T
HFSMC7612-M14X1.5-08L
1/2''
72
10
8
S27
M14X1.5
HFSMC7612-M16X1.5-10L
1/2''
73
11
10
S27
M16X1.5
HFSMC7612-M18X1.5-12L
1/2''
73
11
12
S27
M18X1.5
HFSMC7612-M22X1.5-15L
1/2''
74
12
15
S27
M22X1.5
HFSMC7612-M26X1.5-18L
1/2''
74
12
18
S27
M26X1.5
S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Ls(mm)
Li(mm)
B(mm)
Hs(mm)
T
HFSMC7612-M14X1.5-06S
1/2''
74
12
6
S27
M14X1.5
HFSMC7612-M16X1.5-08S
1/2''
74
12
8
S27
M16X1.5
HFSMC7612-M18X1.5-10S
1/2''
74
12
10
S27
M18X1.5
HFSMC7612-M20X1.5-12S
1/2''
74
12
12
S27
M20X1.5
HFSMC7612-M24X1.5-16S
1/2''
76
14
16
S27
M24X1.5
Art. No.
Body Size (inch)
Ls(mm)
Li(mm)
B(mm)
Hs(mm)
T
HFSFC7612-1/2"
1/2''
70
12
10
S27
1/2''BSPP (NPT)
HFSFC7612-3/4"UNF
1/2''
70
12
10
S27
3/4''UNF
HFSFC7612-3/8"UNF
1/2''
70
12
10
S27
3/8''UNF

Male Plug

Hydraulic Push-Pull Coupling male
  L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
Li(mm)
B(mm)
Hp(mm)
T
HFSMP7612-M14X1.5-08L
1/2''
57
10
8
S27
M14X1.5
HFSMP7612-M16X1.5-10L
1/2''
58
11
10
S27
M16X1.5
HFSMP7612-M18X1.5-12L
1/2''
58
11
12
S27
M18X1.5
HFSMP7612-M22X1.5-15L
1/2''
59
12
15
S27
M22X1.5
HFSMP7612-M26X1.5-18L
1/2''
59
12
18
S27
M26X1.5
  S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size (inch)
Lp(mm)
Li(mm)
B(mm)
Hp(mm)
T
HFSMP7612-M14X1.5-06S
1/2''
74
12
6
S27
M14X1.5
HFSMP7612-M16X1.5-08S
1/2''
74
12
8
S27
M16X1.5
HFSMP7612-M18X1.5-10S
1/2''
74
12
10
S27
M18X1.5
HFSMP7612-M20X1.5-12S
1/2''
74
12
12
S27
M20X1.5
HFSMP7612-M24X1.5-16S
1/2''
76
14
16
S27
M24X1.5
Art. No.
Body Size (inch)
Lp(mm)
Li(mm)
B(mm)
Hp(mm)
T
HFSFP7512-1/2"
1/2''
44
12
10
S27
1/2''BSPP (NPT)
HFSFP7512
-3/4" UNF
1/2''
44
12
10
S27
3/4''UNF
HFSFP7512
-3/8"UNF
1/2''
44
12
10
S27
3/8''UNF
HFSFP6612-1/2"
1/2''
44
12
10
S27
1/2''BSPP (NPT)
HFSFP6612
-3/4" UNF
1/2''
44
12
10
S27
3/4''UNF
HFSFP6612
-3/8"UNF
1/2''
44
12
10
S27
3/8''UNF

Technical Specifications

Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Min. Burst
Pressure
Male
(bar)
Min. Burst
Pressure
Female
(bar)
Min. Burst
Pressure
Coupled
(bar)
Spillage
(ml)
08
1/2''
250
250
250
1000
1000
1000
1.8
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 500 (CRIII)
Specifications:

Market Interchange

PARKER 4200 SERIES

PIONEER 2000 SERIES

SAFEWAY S40 SERIES

FASTER CPV SERIES

FASTER CNV SERIES

STUCCHI I-IP SERIES

DNP PPV1 SERIES

VOSWINKEL HP SERIES

DIXON AG SERIES, FASTER PV SERIES

FASTER NV SERIES

Valve Type:
Poppet
Connection:
Push to Connect
Disconnection:
Pull to Disconnect
Connection Under Pressure:
Not Allowed

Pressure Drop

Pressure Drop

Applications

Hydraulic Push-Pull Coupling for Tractor-Towed Beach Cleaner
Tractor-Towed Beach Cleaner
