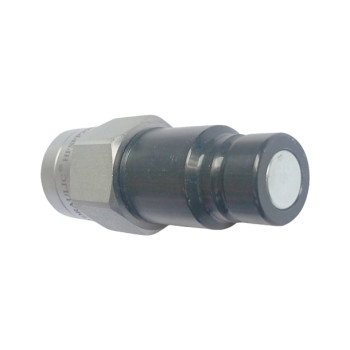

296 Series | APM Flat Face Quick Disconnects, ISO 16028, Connection Under Pressure (Steel)
- group name
- Bobcat Replacement Couplers
- Min Order
- 1 piece
- brand name
- EH
- update time
- Fri, 06 Feb 2026 00:04:00 GMT
Paramtents
Interchange STUCCHI APM SERIES
Interchange PARKER FEC SERIES
Interchange FASTER 3FFH SERIES
Interchange DIXON HTE SERIES
Interchange CEJN X64 SERIES
Interchange DNP PLK4 SERIES
Interchange SAFEWAY FFEC49 SERIES
Interchange VOSWINKEL FU SERIES
Interchange FASTER 3FFI SERIES
Packging & Delivery
-
Min Order1 piece
Briefing
This EH series is interchangeable with STUCCHI APM SERIES, PARKER FEC SERIES, FASTER 3FFH SERIES, FASTER 3FFI SERIES, DIXON HTE SERIES, CEJN X64 SERIES, DNP PLK4 SERIES, SAFEWAY FFEC49 SERIES, and VOSWINKEL FU SERIES. Steel Product. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.
Detailed
This EH series is interchangeable with STUCCHI APM SERIES, PARKER FEC SERIES, FASTER 3FFH SERIES, FASTER 3FFI SERIES, DIXON HTE SERIES, CEJN X64 SERIES, DNP PLK4 SERIES, SAFEWAY FFEC49 SERIES, and VOSWINKEL FU SERIES. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP29638-3/8"NPT | 3/8'' | 80 | S27 | 3/8"NPT |
| HFSFP29638-1/2"NPT | 3/8'' | 82.5 | S27 | 1/2"NPT |
HFSFP29638-3/8"G | 3/8'' | 80 | S27 | 3/8"BSPP |
HFSFP29638-1/2"G | 3/8'' | 82.5 | S27 | 1/2"BSPP |
HFSFP29638-3/4"UNF | 3/8'' | 80 | S27 | 3/4"UNF-16 |
HFSFP29612-1/2"NPT | 1/2'' | 91 | S36 | 1/2"NPT |
HFSFP29612-3/4"NPT | 1/2'' | 93.5 | S36 | 3/4"NPT |
HFSFP29612-1/2"G | 1/2'' | 91 | S36 | 1/2"BSPP |
HFSFP29612-3/4"G | 1/2'' | 93.5 | S36 | 3/4"BSPP |
HFSFP29612-7/8"UNF | 1/2'' | 91 | S36 | 7/8"UNF-14 |
HFSFP29612-1-1/16"UN | 1/2'' | 93.5 | S36 | 1-1/16"UN-12 |
HFSFP29658-3/4"NPT | 5/8'' | 95 | S36 | 3/4"NPT |
HFSFP29658-1-1/16"UN | 5/8'' | 95 | S36 | 1-1/16"UN-12 |
HFSFP29634-3/4"NPT | 3/4'' | 109 | S46 | 3/4"NPT |
HFSFP29634-3/4"G | 3/4'' | 109 | S46 | 3/4"BSPP |
HFSFP29634-1"NPT | 3/4'' | 109 | S46 | 1"NPT |
HFSFP29634-1"G | 3/4'' | 109 | S46 | 1"BSPP |
HFSFP29634-1-1/16"UN | 3/4'' | 109 | S46 | 1-1/16"UN-12 |
HFSFP29634-1-5/16"UN | 3/4'' | 109 | S46 | 1-5/16"UN-12 |
HFSFP29610-1"NPT | 1'' | 122.5 | S55 | 1"NPT |
HFSFP29610-1"G | 1'' | 122.5 | S55 | 1"BSPP |
HFSFP29610-1-1/4"NPT | 1'' | 122.5 | S55 | 1-1/4"NPT |
HFSFP29610-1-1/4"G | 1'' | 122.5 | S55 | 1-1/4"BSPP |
HFSFP29610-1-5/16"UN | 1'' | 122.5 | S55 | 1-5/16"UN-12 |
HFSFP29610-1-5/8"UN | 1'' | 122.5 | S55 | 1-5/8"UN-16 |
